Wrong Transmission behavior is Edge Node ID is left blank

Ignition Modules MQTT Modules
1

Hi,

Using Ignition 8.1.17 and CL modules in according versions (4.0.11), Transmission will not publish any tag after the first folder inside the Tag Path folder if you left blank the Edge Node ID field in the transmitter definition.
Is it by design or… ?

Thank you four your direction.

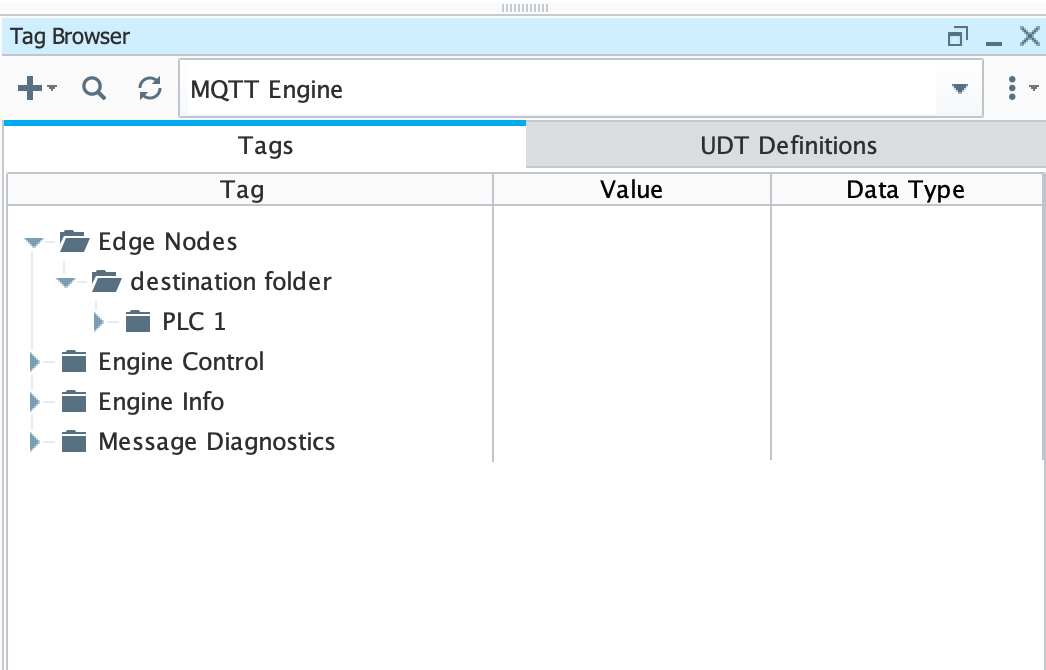

2022-10-25_19-37-26
2022-10-25_19-37-261066×682 33.7 KB

2022-10-25_19-37-05
2022-10-25_19-37-051046×670 29.6 KB

2022-10-25_19-37-40
2022-10-25_19-37-401414×598 40.7 KB

2

This has to do with how the Sparkplug IDs get picked up either from the Transmitter configuration or from the tag tree folders itself. Have a look at this doc which describes the relationships: MQTT Transmission Transmitters and Tag Trees - MQTT Modules for Ignition 8.x - Confluence

4

That makes sens. It’s the first time I do not use the SpB transmitter definition, so this surprised me.

Thanks.
