Failed to find the metric name from alias

Ignition Modules MQTT Modules
1

Please help me with my message. It worked fine in version 4.0.21. I’ve added timestamp to all metrics and removed alias for “Node Control/Rebirth” in the NBIRTH message.

The error appears after the first NDATA command.

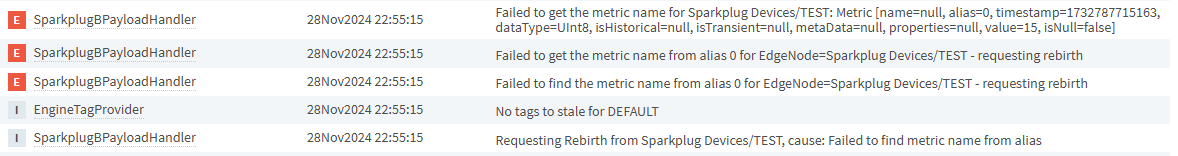

SparkplugBPayloadHandler	28Nov2024 22:55:15	Failed to find the metric name from alias 0 for EdgeNode=Sparkplug Devices/TEST - requesting rebirth
SparkplugBPayloadHandler	28Nov2024 22:55:15	Failed to get the metric name from alias 0 for EdgeNode=Sparkplug Devices/TEST - requesting rebirth
SparkplugBPayloadHandler	28Nov2024 22:55:15	Failed to get the metric name for Sparkplug Devices/TEST: Metric [name=null, alias=0, timestamp=1732787715163, dataType=UInt8, isHistorical=null, isTransient=null, metaData=null, properties=null, value=15, isNull=false]

image1178×156 13.4 KB

2024-11-28 22:55:10:183
Topic: spBv1.0/Sparkplug Devices/NBIRTH/TEST QoS: 0

{
    metrics: {
      0: {
        name: "Node Control/Current Second",
        alias: 0,
        timestamp: 1732787710138,
        datatype: 5,
        intValue: 0
},
      1: {
        name: "Node Control/Rebirth",
        timestamp: 1732787710138,
        datatype: 11,
        booleanValue: false
},
      2: {
        name: "bdSeq",
        timestamp: 1732787710170,
        datatype: 8,
        longValue: 0
}
},
    timestamp: 1732787710170,
    seq: 0
}

2024-11-28 22:55:15:182
Topic: spBv1.0/Sparkplug Devices/NDATA/TEST QoS: 0

{
    metrics: {
      0: {
        alias: 0,
        timestamp: 1732787715163,
        datatype: 5,
        intValue: 15
}
},
    timestamp: 1732787715163,
    seq: 1
}

2024-11-28 22:55:15:196
Topic: spBv1.0/Sparkplug Devices/NCMD/TEST QoS: 0

{
    metrics: {
      0: {
        name: "Node Control/Rebirth",
        timestamp: 1732787715166,
        datatype: 11,
        isNull: false,
        booleanValue: true
}
},
    timestamp: 1732787715166
}

Edit: it works if I rename the metric to “Current Second” instead of “Node Control/Current Second”. Seems like a bug.

2

This issue still happens in 4.0.25 (which is different to the behaviour in 4.0.21). Seems like any metric with name starts with “Node Control/” is not allowed in NDATA messages. Is this a bug or intended?

3

This sounds like it could be a regression. I suspect if you weren’t using aliasing, it would work. I’ve added an issue to our next sprint to investigate this further. I’ll get back to you with our results.
